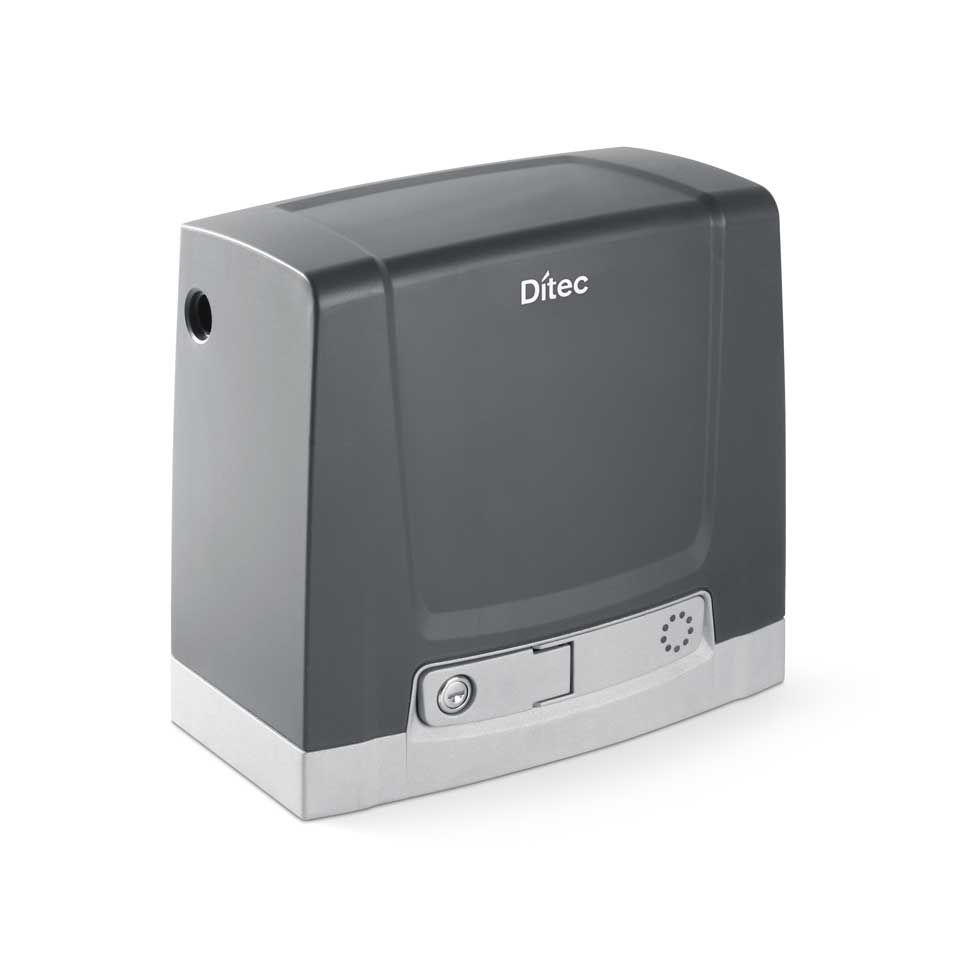

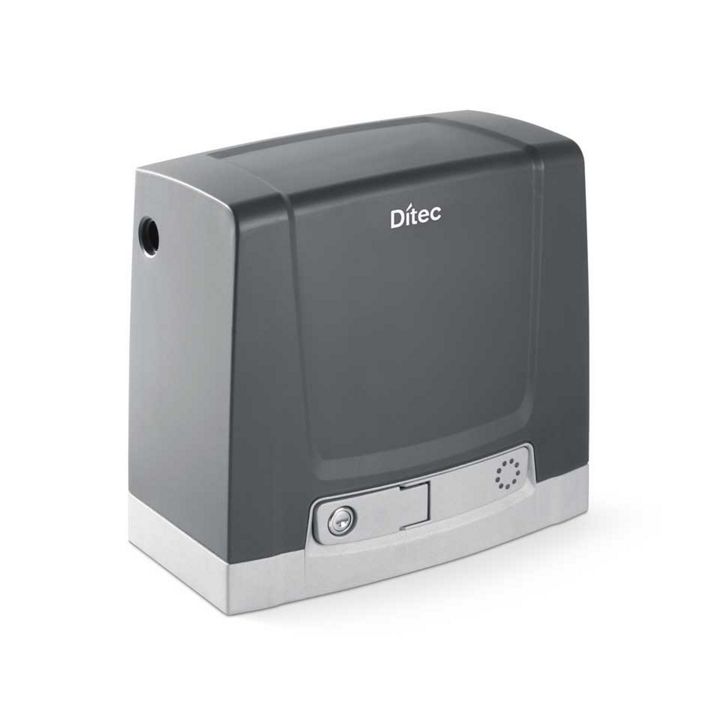

Ditec NEOS Green

THE GREEN, HIGH-PERFORMANCE, SAFE AND VERSATILE AUTOMATION

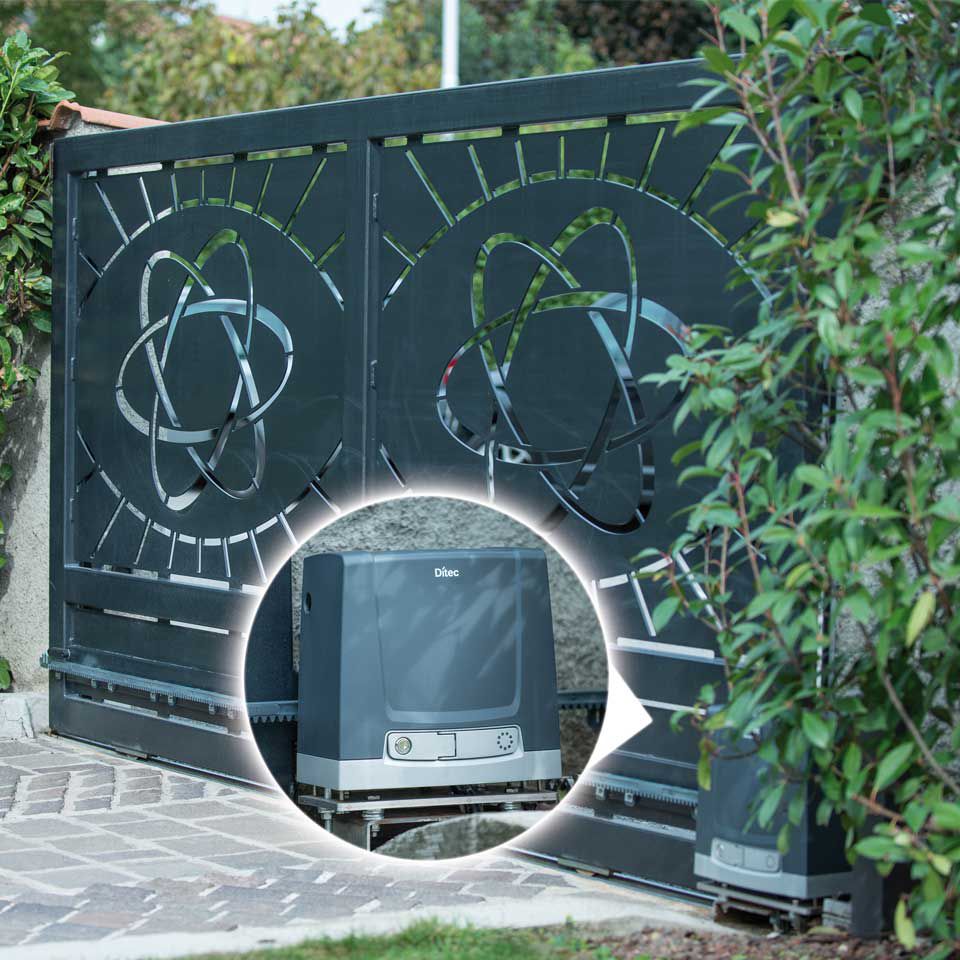

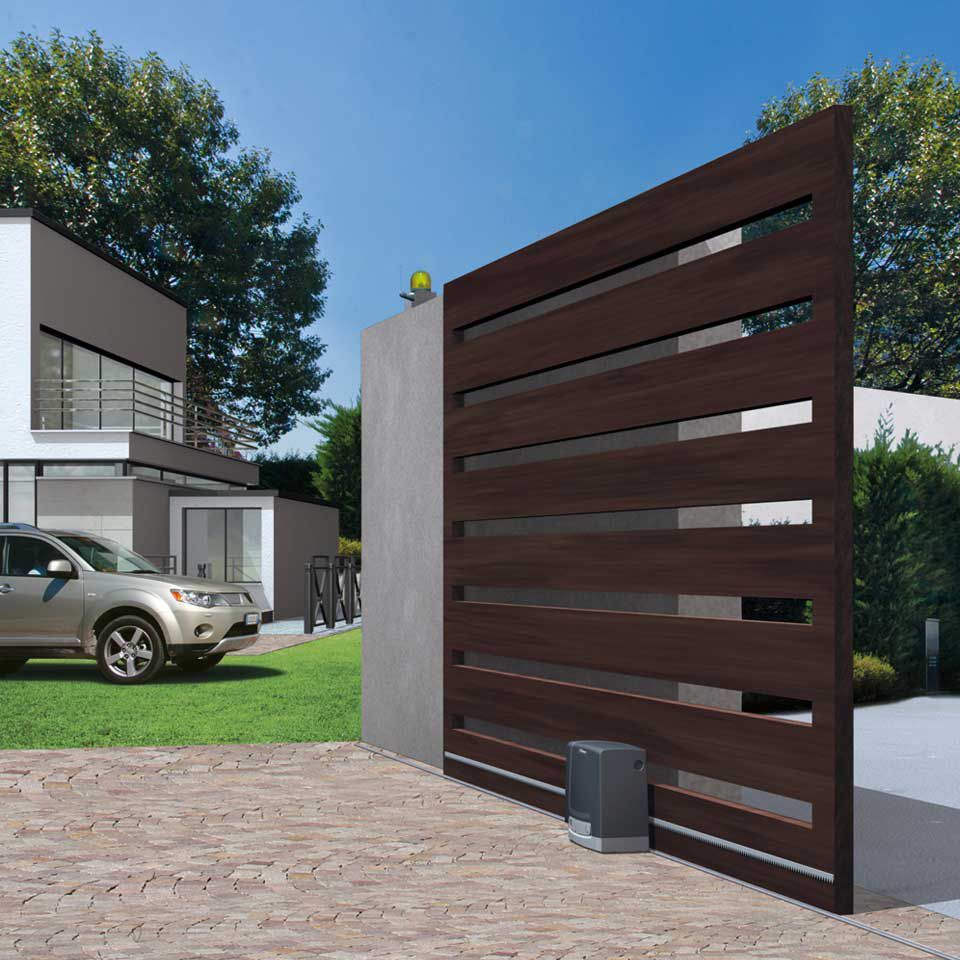

Ditec NEOS Green is the operator for residential, commercial and industrial applications designed to operate even under the most intense use and extreme weather conditions.

Quick to install and easy to maintain, it is available in 3 versions for 500 kg, 800 kg and 1000 kg gates and integrates the CS12MG control panel with display and 433/868 MHz two-frequency radio receiver into the operator.

A Green and better performing product!

ENERGY EFFICIENCY: standby consumption < 0.5 W

The NEOS range has been upgraded to Green:

  • Standby consumption less than 0.5 W!
  • In line with the new European Regulation 2023/826/EU, which establishes the ecodesign requirements for the off-mode, standby and network-standby power consumption of electrical and electronic household and office equipment, as set out in Directive 2009/125/EC.

GREATER STRENGTH

Ditec NEOS Green is available in three sizes: 500 kg, 800 kg and 1000 kg.

ZERO THOUGHTS: robust, durable, reliable over time

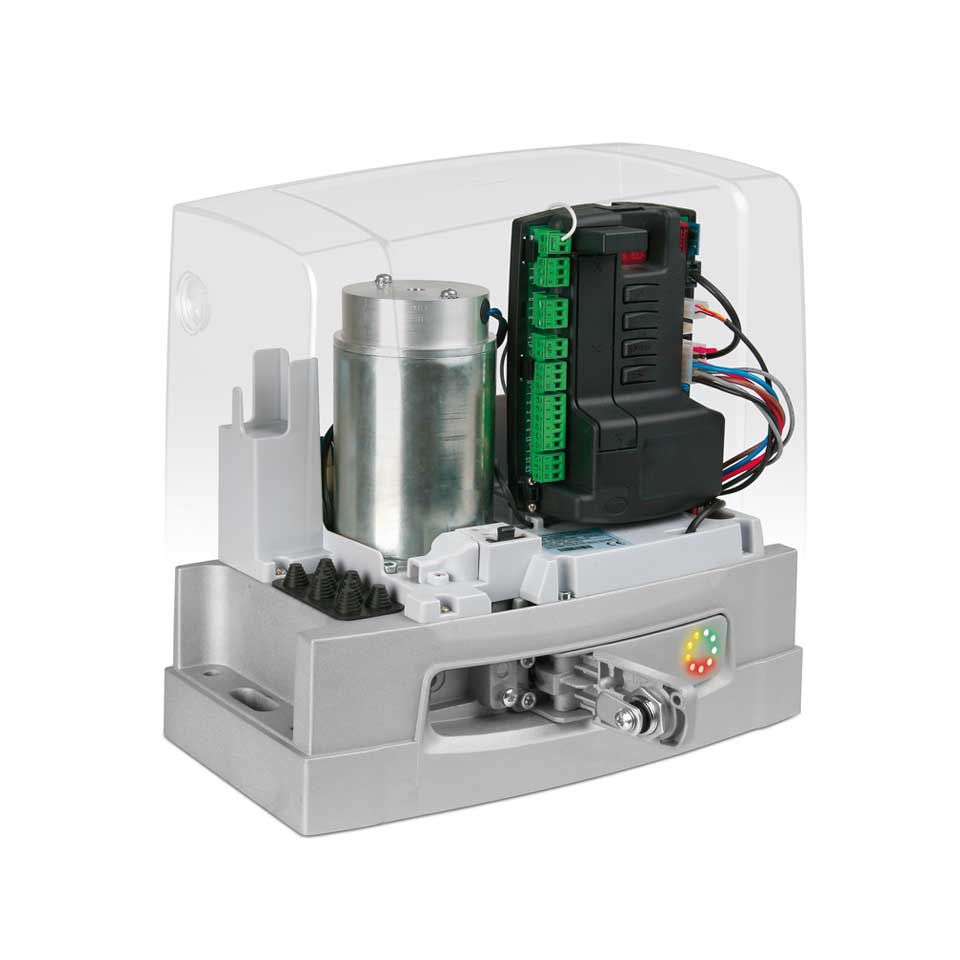

  • One-piece die-cast aluminium base for unrivalled strength.
  • Special high quality self-levelling grease that keeps screw and crown always lubricated.
  • Ttemperature sensor that adapts gearmotor performance in cold, ice or snow (NIO function - No Ice Option)..

INSTALL AND CONFIGURE THE OPERATOR FASTER

  • Steel plates of different thickness and design for correct installation in all circumstances and levelling grains for operator adjustment to the millimeter.
  • IP24D degree of protection to avoid contact, even accidental, with live parts.
  • Self-learning procedure facilitated by display and navigation buttons for motor installation in just two steps.
  • Three predefined configurations for residential and condominium use. And that's not all: removable memory for saving operating parameters and duplicating them on another operator.
  • Supplied as standard with the new 433 and 868 MHz bi-frequency receiver (ref. RCB50E), to easily solve any radio interference problems.

UNIQUE PERFORMANCE

  • Ditec NEOS Green offers you an advanced CS12MG panel for more precise adjustment of all parameters and additional terminals for greater convenience during wiring operations.
  • Know the status of your operator! LEDs allow you to easily know the status of your operator without opening the ABS cover: correct operation, battery mode, unlock door open, fault or maintenance request.

FULL COMPLIANCE WITH EU DIRECTIVES AND STANDARDS
