Ditec CROSS 18/20

THE AUTOMATION SYSTEM DESIGNED TO LAST

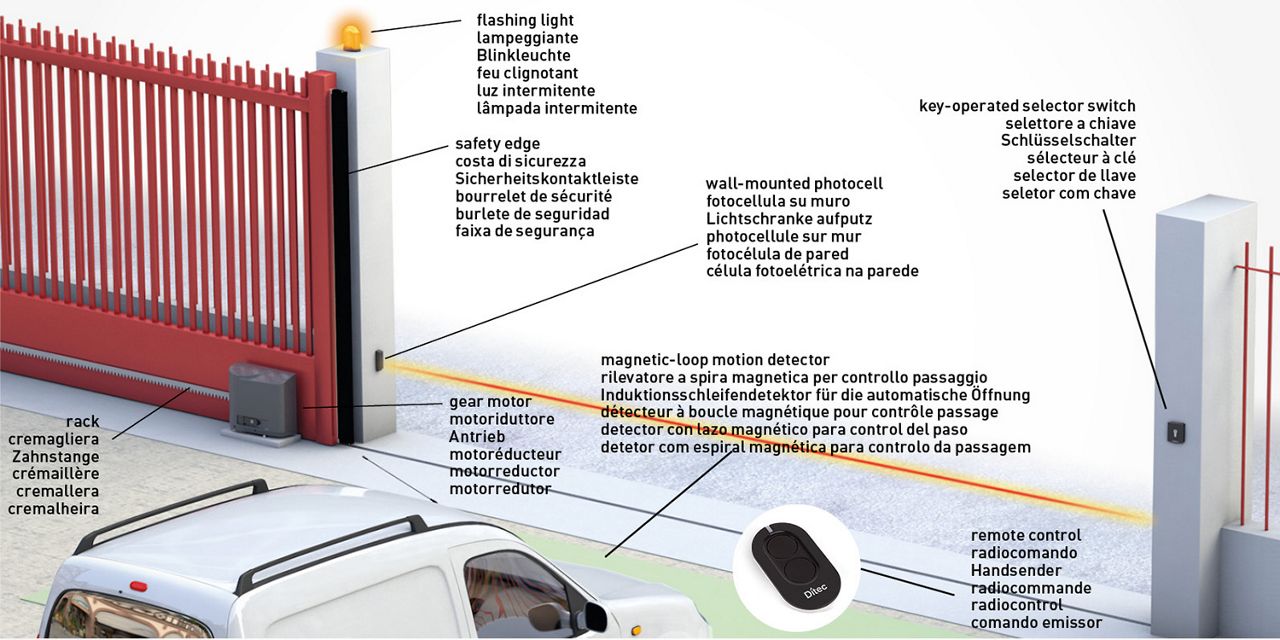

Strong and sturdy for residential, commercial and industrial applications, they can move gates of up to 60 m wide, weighing up to 2000 kg. The best choice for heavy-duty use, the automation is available in different solutions equipped either with a brand new 230 Vac control panel or an innovative inverter technology based control unit.

Two models available in three different versions:

• Ditec CROSS 18: for sliding gates up to 1800 Kg. For intensive use. Available with mechanical (CROSS 18EP) or magnetic limit switches (CROSS 18VEP). LCA85 control panel (included)
• Ditec CROSS 20: for sliding gates up to 2000 Kg. For very intensive use. Available with inverter and magnetic limit switches control (CROSS 20VEI). LCU43A control panel (included)

POWERFUL AND FAST

The advanced digital control panel LCA85, equipping CROSS 18EP and CROSS 18VEP, allows to manage perfectly the stroke of the gate in all its phases. Thanks to an innovative proprietary system of constant position control (Ditec Virtual Encoder), the position is perfectly estimated with precision and safety.

230 Vac electronics guarantees maximum performances even under adverse conditions, through a stronger dynamic thrust during the initial phase of operation.

CROSS 20VEI is equipped with 230 Vac 50/60 Hz inverter technology control panel. The use of the inverter guarantees more power and torque to manage the three-phase motor in all the stroke phases. The hardware of the gate is preserved thanks to the possibility of managing acceleration and deceleration ramps, opening and closing speed, easily configurable from the display.

RELIABLE and STURDY

• lubricating grease suitable for temperatures ranging from -35°C to +55°C
• steel worm screw
• irreversible gear motor to avoid installation of electro-mechanical locks
• Safety-Test function
• electric brake and electronic clutch to guarantee irreversibility and precise stopping points
• key-protected handle release system for manual opening and closing of the gate in the case of a blackout
• vertical levelling screws and horizontal adjustment slots to adjust the automation system to the surface below and the gate rack.

DITEC ELETRONICS…WHAT ELSE?!

LCA85 control panel for a perfect motion control

• Wizard menu (Wizard WZ), to configure the control panel quickly and simply
• more than 100 parameters adjustable, using the display and the navigation buttons
• energy saving mode which limits stand-by consumption by disconnecting accessories
• integrated diagnostics with counters and recent alarms log
• advanced maneuver management and force adjustment
• adjustable obstacle thrust force sensitivity
• automatic ramp adjustment: in low temperature conditions
• safety device test
• 2 dedicated inputs for selftesting resistive active safety edges (8.2 kΩ)
• separate power outputs for 24 Vac and 24 Vdc accessories
• 2 configurable 24 Vdc outputs for accessories
• heavy traffic function

Inverter LCU43 control panel, powerful and fast automation

• thanks to the Ditec Virtual Encoder, the position of the gate is constantly estimated
• high speed: 30 cm/s for gates up to 2000 Kg in compliance with all the current standards
• over-temperature protection for board and motor
• energy saving mode which limits stand-by consumption by disconnecting accessories
• 2 dedicated inputs for selftesting resistive active safety edges (8.2 kΩ)
• Power Boost function: the control panel automatically adjusts to provide more thrust
• dedicated terminal for master/slave configuration for synchronized control of double or interlocked automation
• integrated diagnostics with counters and recent alarms log
• advanced diagnostics: events log can be stored on a MicroSD card  and analysed via Ditec Amigo software (free)

FULL COMPLIANCE WITH EU DIRECTIVES AND STANDARDS
