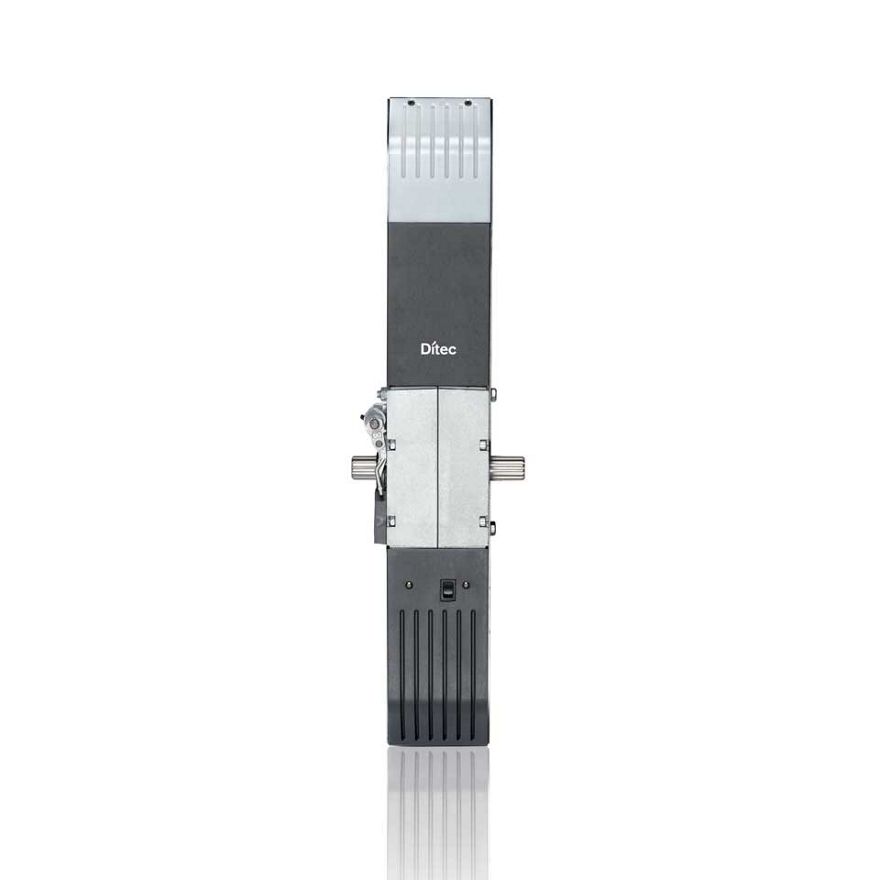

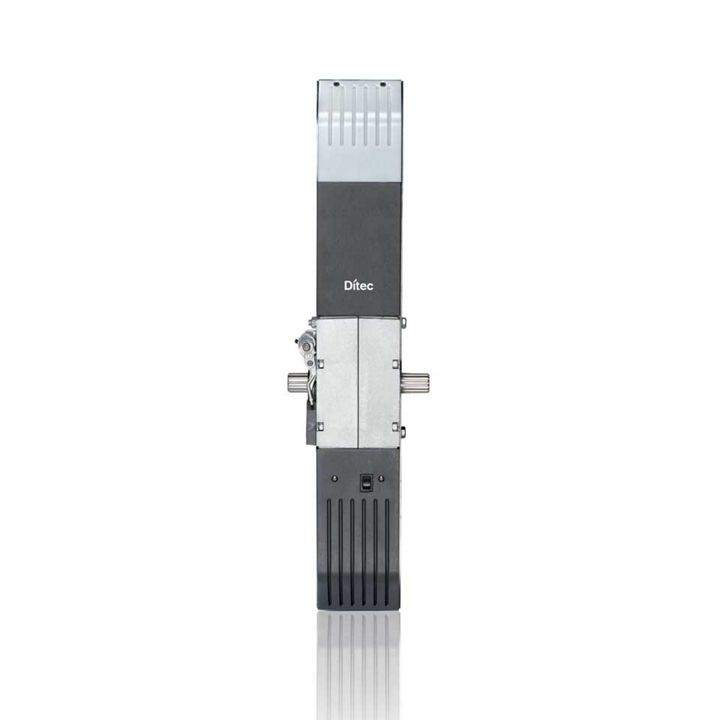

Ditec BOX B for up-and-over doors

The historic Ditec motor now with low environmental impact and Bluetooth^® connectivity!

Ditec BOX B is the ideal solution for automating counterweighted overhead doors.

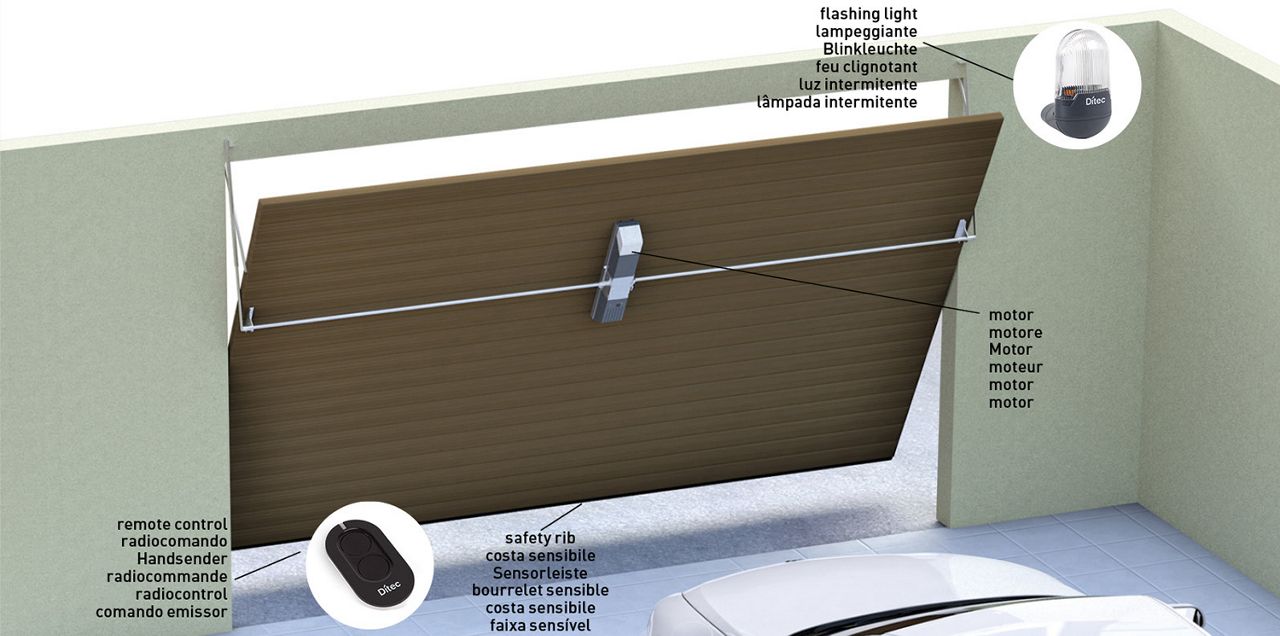

It can move, with 1 or 2 gearmotors, both counterweighted overhead doors with a standard curtain and fully recessed or articulated doors. Easy to install, it automates doors up to 7 mq with a single operator and up to 12 mq with 2 motors in parallel.

ENERGY EFFICIENCY: standby consumption < 0.8 W

• Automation aligned with the new European standards (2023/826/EU) in terms of energy saving and standby consumption: with an active display and active Bluetooth^®, Ditec BOX B consumes < 0.8 W.
• High efficiency switching power supply and more precise control of output current.

AUTOMATION READY FOR USE

Automation completes with courtesy light, fixing base and key release already pre-wired, control panel with bi-frequency radio receiver and integrated Bluetooth^®, limit switches already fitted. On-board opening button.

A VERSATILE AND SAFE PRODUCT

• Bi-frequency radio receiver with integrated Bluetooth^®, thanks to the new RCB100E radio receiver module, compatible with both 433.92 MHz and 868.35 MHz frequencies (default: 433.92 MHz).
• Fast self-learning procedure, which in two maneuvers automatically registers the stop positions, self-adjusting to the most diverse installation contexts.
• Constant electronic control of impact forces and immediate detection of obstacles ensuring the operator stops or reverses motion (if configured).
• Opening and closing limit switches with the possibility of configuration as stop or proximity switches.
• Temperature sensor that adapts the gearmotor's performance in cold, ice and snow (NIO function - No Ice Option) and protects the motor in the event of over-temperature.
• Manual release via internal lever or with a customized key from the outside. A return system by means of a metal cord to be connected to the handle on the sash (optional) is also available.

SMART CONTROL: CONTROL AND MANAGE AUTOMATION WITH YOUR SMARTPHONE [Available soon!]

In the era of total connectivity, gate and garage automations have become essential components of modern life. The integration of these automations provides access to an unprecedented level of convenience and security.

Using the Ditec App and Web application, they are guaranteed:

• Control and monitor the status of your gate or garage from anywhere to ensure safe and hassle-free access;
• Receive real-time notifications to keep track of access and security;
• Simplified configuration and maintenance, reduced response time and improved efficiency;
• Fast and effective remote support, performance monitoring and real-time troubleshooting, ensuring superior service quality.

Operational efficiency and reduced response times translate into economic benefits for both installers and end-users, creating a win-win ecosystem.

AES-128 ENCRYPTION AND PROTECTED MODE

Compatible with the AES-128 radio transmission encryption protocol, which makes it impossible to use cloned transmitters. Ditec BOX B can decrypt remote controls programmed with a customized installation code (Ditec PROTECTED mode).

FULLY COMPLIANT WITH EU STANDARDS AND DIRECTIVES
