Ditec AIR for sectional and up-and-over doors

Ditec AIR is the new range of automations for sectional balanced garage doors and counterweighted overhead doors. With superior materials and a bi-frequency radio receiver, Ditec AIR ensures reliable performance and maximum flexibility.

COMPLETE RANGE

Two heavy-duty 24 VDC motors (up to 70 cycles/hour) with encoder, up to 600 N and 1000 N thrusts that move doors up to 200 kg in weight and 17 mq in area.

Different versions of track systems: designed for easy handling and shipping (rails in 1.1 m segments) or version for faster assembly (rails in 2 segments of 1.65 or 2.2 m).

Ditec AIR was developed with the needs of the professional in mind:

• Bi-frequency receiver to avoid unwanted interference, selectable directly from the configuration menu
• Quick-mount rails and ceiling mounting brackets ensure fast and reliable installation of the automation
• Self-learning procedure for motor installation in just two maneuvers, using the automation's navigation buttons, wall station or App
• Constant monitoring of impact forces ensure excellent safety for users
• Built-in diagnostics to check the degree of door imbalance (Ditec Patent) during the opening and closing maneuver, thus facilitating mechanical fine-tuning adjustments; continuous measurement of automation efficiency level (Ditec Patent), with automatic notifications in case of performance degradation or maintenance needs.

Numerous benefits for the end customer

• buzzer for audible signaling of automation in motion
• vacation mode to disable radio controls and strengthen the security of the entrance
• fast automation to reduce waiting time during opening and closing phases
• high-brightness LED courtesy light (3500 lms) to ensure safety and comfort
• emergency batteries to avoid annoying power outages.

ENERGY SAVING

Automations aligned with the new European regulation 2023/826/EU in terms of energy saving and standby consumption.

With display and network device active, Ditec AIR consumes less than regulatory requirements: < 0.6 W for AIR600B and < 0.8 W for AIR1000B with Bluetooth network device active.

DITEC SMART READY! [coming soon!]

With built-in Bluetooth and the App for iOS and Android, the control and the configuration of the automation is possible. Also available in WebApp mode. Optional accessory for Wi-Fi and Cellular Network connection.

Using the Ditec App and Web application, available for both the end user and the professional, it is possible to:

• Control and monitor the status of the gate or garage from anywhere, ensuring safe and hassle-free access
• Receive real-time notifications to keep track of access and security
• Simplify configuration and maintenance, reduce response time and improve efficiency
• Provide fast and effective remote support, monitor performance and resolve any problems in real time, ensuring superior service quality.
• Operational efficiency and reduced response time translate into economic benefits for both installers and end users, creating a win-win ecosystem.

Stay tuned! App will be available in the store in the first quarter of 2026. Wi-Fi and cellular-network optional accessories will be available during 2026.

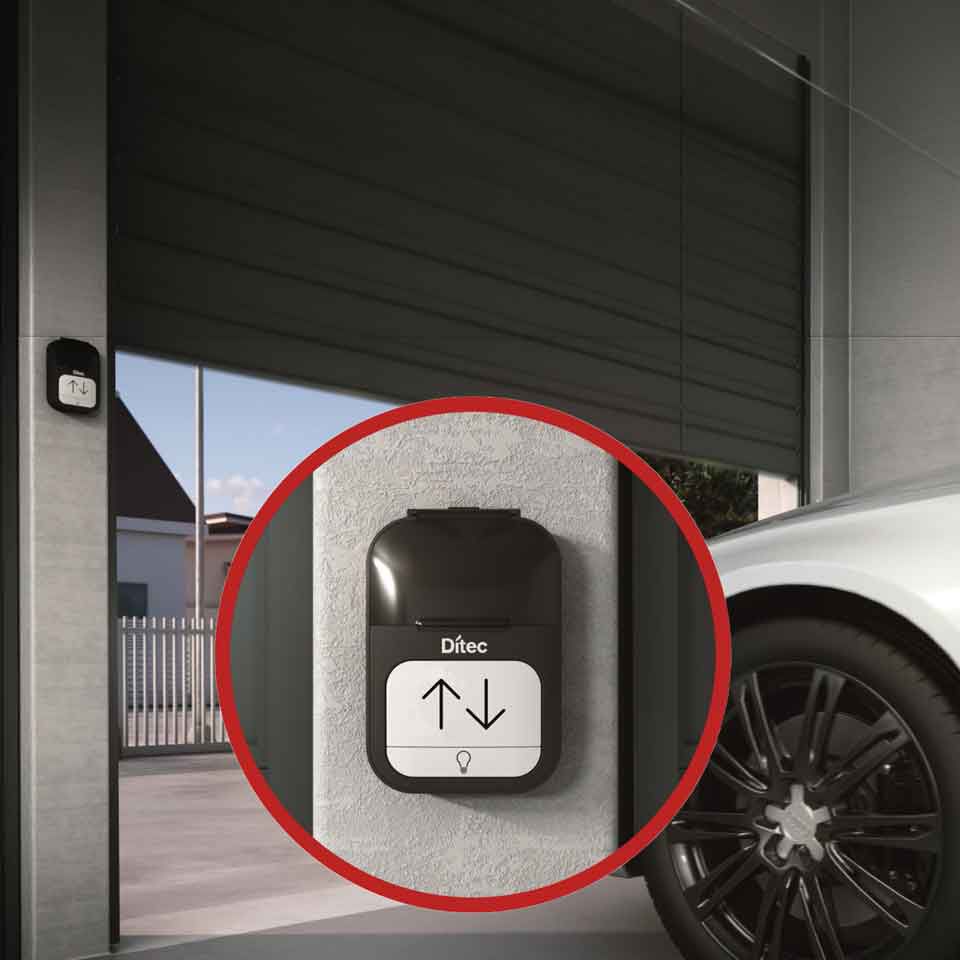

Add extra convenience and safety with the all-new Wall Station WS3

Ditec AIR comes with a new optional accessory, the WS3 Wall Station, an advanced wall-mounted control unit extension that improves both convenience and safety. For installers, it simplifies setup, maintenance, and diagnostics by allowing full set-up and control of the automation from the ground, with quick-access functions and secure, code-protected settings. For end users, it offers easy door control, enhanced security features like Vacation Mode, and customizable settings such as lighting and automatic closing-making garage door management more efficient and user-friendly.
